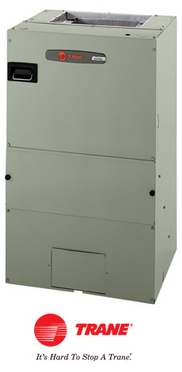

AIR HANDLER

The air handler is an important part of your air conditioning equipment. Its job is to effectively circulate conditioned air throughout your home.

WHAT IT IS

Your central heating and cooling system consists of two main parts—an outdoor unit and an indoor unit, or air handler. When matched with a heat pump, it circulates both cool and hot air, depending on the season. With properly sized air handlers, your family has the right amount of clean, comfortable air all year round. Plus, Air handlers make a significant contribution to the overall efficiency of your system. That’s because the more efficient your air handler is, the less work your outdoor unit has to do to make your home comfortable.

HOW IT WORKS

The Hyperion™ air handler is built unlike anything the market has ever seen. It is constructed more like a refrigerator than a typical air handler, with insulation between the walls of the innovative cabinet. This insulation prevents condensation that may cause damage to the air handler itself or your home. In addition to eliminating “sweating,” the cabinet also eliminates the loose fibers from fiberglass insulation that may enter the airstream with other air handlers. The exclusive double-wall construction provides families with peace of mind and cleaner, safer indoor air.

CLEAN AIR. PURE COMFORT.


Highest efficiency


Standard air cleaners have filters that are very dense, so they stop the dust by trapping it in a slightly porous filter. The fewer the pores the more dust it can trap. However, this not only stops the dust and dirt, but it also stops the air from moving as well. So you may not be as comfortable, and less air is cleaned efficiently. This is called pressure drop. The revolutionary Trane CleanEffects™ air filtration system has the lowest pressure drop with the highest efficiency possible.

Small particles, large effects


Particles like dust, smoke and bacteria are often .3 microns or less. At that size, allergens can get deep into your lungs because they aren’t filtered well by your nose and throat. An effective whole-house air cleaner, such as Trane CleanEffects™, can reduce the presence of potential asthma and allergy attack triggers in your home, like dust, pollen, pet hair and dander, dust mites, mildew, lint, fungus, most tobacco smoke, cooking grease, and even bacteria.

Patented innovation


Trane CleanEffects utilizes patented, breakthrough air cleaning technology to remove up to an astounding 99.98% of airborne allergens from the air that passes through the filter. It catches particles as small as .1 micron, making it 8 times more effective than even the best HEPA room filters and up to 100 times more effective than a standard 1" filter.


Verified by Harvard experts

Trane CleanEffects has been performance-tested by LMS Technologies and Environmental Health & Engineering, Inc. (EH&E), with the results verified by professors from the Harvard School of Public Health, so you know you are getting an air filtration system like no other.

AIR CONDITIONERS


An air conditioner, as part of a central heating and cooling system, draws heat energy out of the house and transfers it to the outside air.

WHAT IT IS

An air conditioner can change the temperature, humidity or general quality of the air. More specifically, an air conditioner makes your home cooler, by drawing heat energy out of the house and transferring that heat to the outdoors, then replacing the air inside your home with cooler air.

HOW IT WORKS

The air conditioner in a central heating and cooling system provides cool air through ductwork inside your home, by providing a process that draws out the warm air inside, removing its heat. In a split system, the compressor condenses and circulates the refrigerant through the outdoor unit, changing it from a gas to a liquid. The liquid is then forced through the indoor evaporator coil or cooling compartment. The indoor unit’s fan circulates the inside air to pass across the evaporator fins. The evaporator’s metal fins exchange the thermal energy with the air around it. There, the refrigerant turns from liquid into vapor, removing any heat from the surrounding air. As the heat is removed from the air, the air is cooled and blown back into the house.

From that point, the condenser or outdoor unit then turns the refrigerant vapor back into a liquid, removing any heat. By the time the fluid leaves the evaporator again, it is a cool, low-pressure gas, eventually returning to the condensor to begin its trip all over again. This process continues again and again until your home reaches the cooling temperature you want, as programmed and sensed by your thermostat setting.



GAS FURNACE

A furnace is a part of the heating system in which the combustion of fossil fuel and transfer of heat occurs. Furnaces can be fueled by natural gas or oil.

WHAT IT IS

A gas furnace is the heating component in a majority of systems in colder weather climates. It converts gas to heat. Another option is an oil furnace that uses oil as its fuel instead of natural gas. The main components to a furnace include burners and heat exchanger, blower and controls. Trane gas and oil furnaces are built to perform again and again, year after year. Beyond performance, we also provide options for energy-efficient operation. In fact, some of our furnaces operate at over 95% efficiency, which means that 95% of the fuel you pay for is actually converted into heat for your home.

HOW IT WORKS

A gas furnace, or forced-air heating system, reacts when the room air temperature drops below your programmed setting on the thermostat. The silicone nitride igniter lights a burner inside the combustion chamber. The heat created is then pushed into the heat exchanger, where the air is then heated. This newly heated air moves through the ductwork and into the rooms of the house. The combustion gases used to create the heat are vented through a flue in the roof or wall.

OIL FURNACE

A furnace is a part of the heating system in which the combustion of fossil fuel and transfer of heat occurs. Furnaces can be fueled by natural gas or oil

WHAT IT IS

An oil furnace is the heating component in some systems in colder weather climates, most commonly in the northeastern United States. It converts oil to heat. Another option is a gas furnace that uses natural gas as its fuel instead of oil. The main components to a furnace include burners and heat exchanger, blower and controls. Trane gas and oil furnaces are built to perform again and again, year after year. Beyond performance, we also provide options for energy-efficient operation.

HOW IT WORKS

From a storage tank, oil is pumped into the furnace where it is turned into a mist, sprayed through the blast tube and ignited. The fine droplets mixed with the air allow it to burn very efficiently. The flame heats the air within a heat exchanger, and the combusted gasses exit through a flue or chimney. Air from the house is drawn through the ductwork, past the heat exchanger and back out of the vents in the house. In most modern systems, the air flows through a filter, which removes any impurities.

HEAT PUMP

A heat pump, as part of a central heating and cooling system, uses the outside air to both heat a home in winter and cool it in summer.

WHAT IT IS

Technically, a heat pump is a mechanical-compression cycle refrigeration system that can be reversed to either heat or cool a controlled space. Installation for this type of system typically consists of two parts: an indoor unit called an air handler and an outdoor unit similar to a central air conditioner, but referred to as a heat pump. A compressor circulates refrigerant that absorbs and releases heat as it travels between the indoor and outdoor units.

HOW IT WORKS

Think of a heat pump as a heat transporter constantly moving warm air from one place to another, to where its needed or not needed, depending on the season. Even in air that's seems too cold, heat energy is present. When it's cold outside a heat pump extracts this outside heat and transfers it inside. When it’s warm outside, it reverses directions and acts like an air conditioner, removing heat from your home.

One advantage of a heat pump is that it moves heat instead of generating heat, giving you more energy efficiency. Also, it is powered by electricity, so you can save substantially on fuel consumption. For example, a Trane XL20i heat pump is among the HVAC industry’s most efficient, with a rating up to 19.00 SEER and 9.00 HSPF.

Note that heat pumps are best for moderate climates, and a supplemental heating source may be needed for lower temperatures. As a year-round solution for home comfort, Trane heat pumps can become a key part of your matched system. An independent Trane dealer can help you decide if a heat pump system is right for you.
